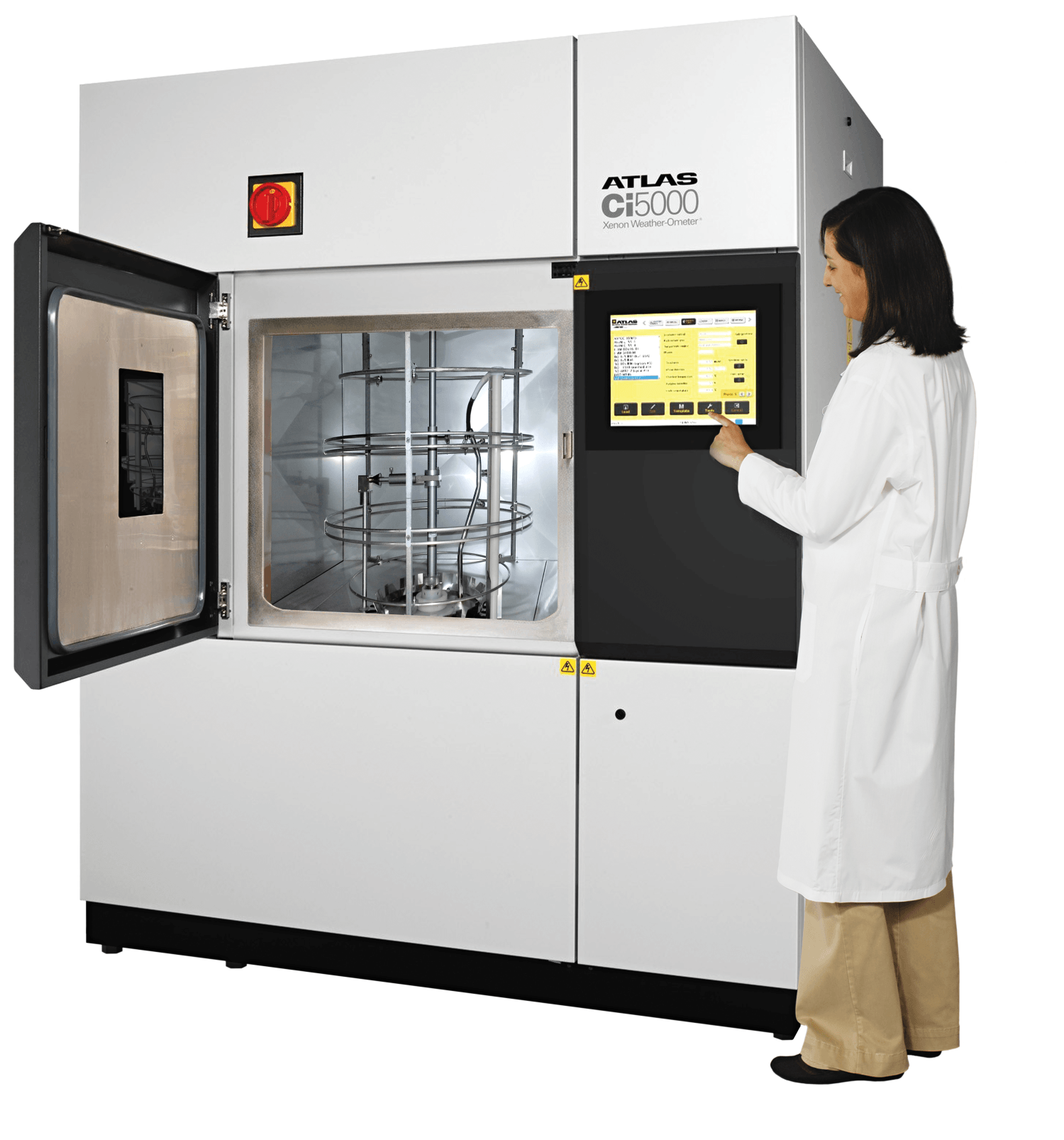

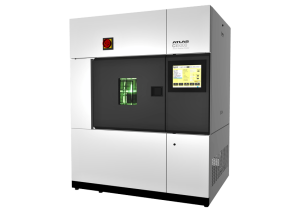

Ci5000 Weather-Ometer

The Ci5000, with its advanced digital control system, represents a monumental achievement in the application of digital and optical technologies in an easy-to-use laboratory weather instrument. The Ci5000 is supported by many OEMs in the automotive, paint and coatings, and plastics industries as the exclusive platform for providing accurate, reproducible, and repeatable results for life prediction. The Ci5000 is CE, UL, CSA, ISO, and EN certified.

Ask the merchant
+420 274 001 391 +421 903 250 173
mail@kaitrade.cz

Basic information

  • 12000W water-cooled xenon arc system
  • Total exposure area: 11,000 cm2 (1,705 in2)
  • 3-tier inclined sample rack
  • TFT full color 12" touch screen with control panel with all test parameters
  • Direct setting and control of Irradiance: 340nm, 420nm, 300-400nm or Lux
  • Direct setting and control of black panel temperature; non-insulated (BPT) or insulated (BST)
  • Direct setting and control of relative humidity
  • Direct setting and control of sample chamber air temperature
  • Diagnostic message display
  • 14 factory pre-programmed test methods
  • Space for 12 custom programs; sub-cycle capability
  • Multiple languages ​​available (English, French, German, Spanish, Japanese, Chinese, Korean, Turkish)
  • Streaming data output via Ethernet or USB port. USB flash drive included
  • Smart DamperTM to reduce quiescent chamber temperature and humidity variability and compensate for changes in ambient laboratory conditions
  • SmartLight MonitorTM verifies that the correct light capsule is installed
  • Spray on samples and stand
  • Filter combinations available to meet all common test methods
  • Air intake dust filter
  • CS-7 xenon lamp cooling system
  • Water purity indicator with alarm
  • Calibrated xenon reference lamp
  • Chamfer window in door
  • Meets CE, UL, ISO EN and CSA safety requirements
  • Automatic test countdown based on time or radiation exposure
  • Specimen holders available to accommodate many sample types
  • VibraSonicTM humidification system

ikonka Air
ikonka Temperature
ikonka Moisture
ikonka Sunlight

Product use

AATCC TM16. 3
Color Fastness to Light: Xenon-Arc
AATCC TM169
Weathering Resistance of Textiles: Xenon Lamp Exposure
AATCC TM16E
Color Fastness to Light
ASTM C1257
Standard Test Method for Accelerated Weathering of Solvent-Releasing Sealants
ASTM C1442
Standard Procedure for Testing Sealants Using Artificial Weathering Equipment
ASTM C1501
Standard Test Method for Color Fastness of Sealants for Building Construction Determined by Laboratory Accelerated Weathering Procedures
ASTM C1519
Standard Test Method for Evaluating the Durability of Building Sealants Using Laboratory Accelerated Weathering Procedures
ASTM C732
Standard Test Method for the Effects of Weathering on Latex Sealants
ASTM C734
Standard Test Method for Low Temperature Flexibility of Latex Sealants After Artificial Weathering weathering
ASTM C793
Standard Test Method for Accelerated Weathering Effects on Elastomeric Mortars
ASTM D1148
Standard Test Method for Deterioration/Discoloration of Rubber by Ultraviolet (UV) or UV/Visible Radiation and Thermal Exposure of Light Surfaces
ASTM D1670
Standard Test Method for Determination of the Failure Point of Accelerated and External Weathering of Bituminous Materials
ASTM D2565
Standard Procedure for Exposure of Plastics for Outdoor Use to Xenon Arc
ASTM D3424
Standard Test Methods for Evaluation of Relative Light Fastness and Weathering Resistance of Printed Materials
ASTM D3451
Standard Test Guide for Powder Paints and Powder Inks
ASTM D4101
Standard Specification for Polypropylene Injection and Extrusion Materials
ASTM D4303
Standard Test Methods for Light Fastness of Pigments Used in Artists' Paints
ASTM D4355
Standard Test Method for Degradation of Geotextiles by Ultraviolet Light and Water (Xenon Arc Apparatus)
ASTM D4434
Standard Specification for Poly(vinyl chloride) Roofing Sheets.
ASTM D4459
Standard Practice for Xenon Arc Exposure of Plastics for Interior Use
ASTM D4637
Standard Specification for EPDM Sheets Used in Single-Ply Roofing Membranes
GB/T 18833
Reflective Sheets for Traffic Signs
GB/T 29061
Films for Glass in Buildings
GB/T 32088
Accelerated Methods for Testing Nonmetallic Parts and Materials for the Automotive Industry under Weathering Conditions Using a Xenon Arc Apparatus
GB/T 3511
Rubber, Vulcanized - Test Method for Resistance to Artificial Weathering (Xenon Arc)
GB/T 5137
Test Method for Automotive Safety Glass
GB/T 6151
Textiles - Color Fastness Tests - General Principle of Testing
GB/T 8427
Textiles - Color Fastness Tests - Color Fastness to Artificial Lighting: Xenon arc lamp test
GB/T 8430
Textiles - Tests for colour fastness to artificial weathering - Xenon arc fading test for incandescent lamps
GM 9125P
Procedures for laboratory accelerated exposure of materials for the automotive industry
GME 60292
Colour fastness and resistance to artificial light marking
GMW 14162
Colour fastness to artificial weathering
GMW 14170
Surface treatment requirements for elastomeric seals
GMW 14650
External plastic part performance requirements
GMW 3414
Test method for artificial weathering of interior trim of automobiles
Hyundai MS 210-05
Moulded plastic parts - interior use
Hyundai MS 300-32
Standard test method - woven, knitted materials
IEC 60068-2-5
Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation and weathering testing.
IEC 61345
UV test for photovoltaic (PV) modules
ISO 105-B02
Textiles - Colour fastness tests - Part B02: Colour fastness to artificial light: Xenon arc lamp fading test
ISO 105-B04
Textiles - Colour fastness tests - Part B04: Colour fastness to weathering: Xenon arc lamp fading test
ISO 105-B06
Textiles - Colour fastness tests - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc lamp fading test
ISO 105-B07
Textiles - Colour fastness tests - Part B07: Colour fastness of fabrics wetted with artificial perspiration
ISO 105-B10
Textiles - Colour fastness tests - Part B10: Artificial weathering - Exposure to filtered xenon arc.
ISO 11341
Paints and varnishes - Artificial weathering and exposure to artificial radiation - Exposure to filtered xenon arc radiation
ISO 12040
Graphic technology - Printing and printing inks - Evaluation of lightfastness by filtered xenon arc radiation
ISO 16474-1
Paints and varnishes - Methods of exposure to laboratory light sources - Part 1: General guidelines
ISO 16474-2
Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon discharge lamps
ISO 18909
Photography - Processed photographic colour films and paper prints - Methods of measurement of image stability
ISO 18930
Imaging materials - Image colour reflections - Methods of evaluation of image stability under outdoor conditions
ISO 18937
Imaging materials - Photographic reflection prints - Methods of measurement of stability to indoor light
ISO 29664
Plastics - Artificial weathering, including acid deposition
ISO 3917
Road vehicles - Safety glazing materials - Test methods for resistance to radiation, high temperature, humidity, fire and simulated weathering
ISO 4892-1
Plastics - Methods of exposure to laboratory light sources - Part 1: General guidelines
ISO 4892-2
Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon arc sources
JASO M346
Test method for xenon arc lamp light exposure for automobile interior
JASO M351
Automotive parts - Accelerated method for testing exterior parts using xenon arc lamp
JIS B 7754
Light and water exposure apparatus (xenon arc lamp type)
JIS D 0205
Test method for weathering of automotive parts
MIL-STD 810F
Environmental engineering and laboratory testing - Part 2: Laboratory test methods - 505.4: Solar radiation
MIL-STD 810G
Environmental Engineering Considerations and Laboratory Testing - Part 2: Laboratory Test Methods - 505.5: Solar Radiation (Solar Radiation)
Peugeot Citroen (PSA) D27 1389
Coatings Rubber and Plastics - Artificial Aging Using a Meteorometer
Peugeot Citroen (PSA) D47 1431
Behavior of Passenger Compartment Materials and Parts to Artificial Light at High and Medium Temperatures
Renault D27 1911
Coatings of Rubber and Plastics - Artificial Aging Using a Meteorometer
Renault D47 1431
Materials and Parts in the Passenger Compartment Behavior to Artificial Light at High and Medium Temperatures
SAE J1885
Accelerated Irradiation of Automotive Interior Components Using a Controlled Irradiation Water-Cooled Xenon Arc Apparatus
SAE J1960
Accelerated Irradiation of Automotive Exterior Materials Using a Controlled Irradiation Water-Cooled Xenon Arc Apparatus
SAE J2412
Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Xenon Arc Apparatus arc
SAE J2413
Protocol for the verification of the performance of a new xenon arc testing device
SAE J2527
Performance standard for accelerated exposure of automotive exterior materials using controlled xenon arc exposure devices
VDA 621- 429
Automotive testing
VDA 621-430
Automotive paint testing - Crack resistance test for two-coat metallic clearcoats
VDA 75202
Automotive interior materials - Color fastness and light aging test at high temperatures: Xenon arc
VW PV 1303
Non-metallic materials - Light resistance test of interior parts
VW PV 3929
Non-metallic materials - Dry and hot climate aging
VW PV 3930
Non-metallic materials - Weathering in humid and hot climates
