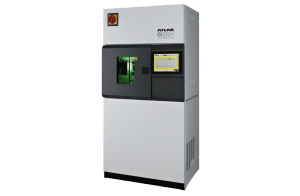

Ci3000+ Weather-Ometer

The Weather-Ometer and Fade-Ometer Ci3000+, with their advanced digital controls, represent a monumental achievement in the application of digital and optical technologies in easy-to-use laboratory weather instruments. The 3000 Series is supported by many OEMs in the textile, paint and coatings, and plastics industries as the exclusive platform for providing accurate, reproducible, and repeatable results for durability prediction. The 3000 Series has been certified to CE, UL, CSA, ISO, and EN standards. Key features of this instrument include: a rotating sample rack to maximize uniformity of all samples; specially designed nozzles to ensure uniform spray distribution of samples and racks; an ASTM Black Panel or ISO/DIN Black Standard Thermometer to control and monitor temperature at the sample level to ensure test repeatability.

Ask the merchant
+420 274 001 391 +421 903 250 173
mail@kaitrade.cz

Basic information

  • 4500 W water-cooled xenon arc lamp
  • Total exposure area 2188 cm2 (339 in2)
  • TFT full color 12" touch screen displays all test parameters
  • Direct setting and control of black panel temperature; non-insulated (BPT) or insulated (BST)
  • Direct setting and control of relative humidity
  • Direct setting and control of sample chamber air temperature
  • Display of diagnostic messages
  • 14 factory-programmed test methods (Weather-Ometer); 6 factory-preprogrammed test methods (Fade-Ometer)
  • Space for 12 custom programs; sub-cycles possible
  • Multiple languages ​​available (English, French, German, Spanish, Japanese, Chinese, Korean, Turkish)
  • Streamed data output via Ethernet or USB port. USB key included
  • SmartDamperTM to reduce test variability in chamber temperature and humidity and compensate for changes in ambient laboratory conditions conditions
  • SmartLight MonitorTM verifies that the correct light capsule is installed
  • Filter combinations available to meet all common test methods
  • Air intake with dust filter
  • CS-7 xenon lamp cooling system
  • Window in door
  • Universal electrical configuration to meet local frequency, voltage and power requirements
  • Meets CE, UL, ISO EN and CSA safety requirements
  • Automatic test countdown based on time or radiation exposure
  • VibraSonicTM humidification system
  • Sample holders available to accommodate many sample types
  • Calibrated xenon reference lamp
  • Water purity indicator

ikonka Air
ikonka Temperature
ikonka Moisture
ikonka Sunlight

Product use

AATCC TM16-2004
Color Fastness to Light
AATCC TM 16. 3 (2014)
Color Fastness to Light, Xenon-Arc
AATCC TM169
Weathering Resistance of Textiles: Xenon-Arc Exposure
ASTM C1442
Standard Practice for Testing Sealants Using Artificial Weathering Equipment
ASTM D2565
Standard Practice for Exposing Plastics to Xenon Arc Lamps for Outdoor Use
ASTM D3424
Standard Test Methods for Evaluating Relative Light Fastness and Weather Resistance of Printed Materials
ASTM D4303
Standard Test Method for Light Fastness of Pigments Used in Artists' Paints
ASTM D4355
Standard Test Method for Degradation of Geotextiles by Exposure to Ultraviolet Light and Water (Xenon-Arc Equipment)
ASTM D4459
Standard Practice for Exposure Geotextiles to Ultraviolet Light and Water (Xenon Arc Apparatus)
ASTM D4798
Standard Test Method for Accelerated Weathering Test Conditions and Procedures for Asphalt Materials (Xenon Arc Method)
ASTM D5071
Standard Procedure for Exposure of Photodegradable Plastics in Xenon Arc Apparatus
ASTM D6551
Standard Procedure for Accelerated Weathering of Pressure Sensitive Tapes Using Xenon Arc Exposure Apparatus
ASTM D6695
Standard Procedure for Exposure of Paints and Similar Coatings to Xenon Arc
ASTM D7869
Standard Procedure for Xenon Arc Exposure Test with Increased Light and Water Exposure for Transportation Coatings
ASTM D904
Standard Procedure for Exposure of Adhesive Specimens to Artificial Light
ASTM G151
Standard Procedure for Exposure of Nonmetallic Materials in Accelerated Test Apparatus, Using Laboratory Light Sources
ASTM G155
Standard practice for the operation of xenon arc light equipment for the exposure of non-metallic materials
GME 60292
Indication of colour fastness and resistance to artificial light
IEC 60068-2-5
Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation and weathering testing.
ISO 105-B02
Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc test
ISO 105-B04
Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
ISO 105-B06
Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc test
ISO 105-B07
Textiles - Tests for colour fastness - Part B07: Colour fastness of fabrics moistened with artificial perspiration
ISO 105-B10
Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon arc radiation.
ISO 12040
Graphic technology - Printing and printing inks - Assessment of lightfastness by filtered xenon arc radiation
ISO 16474-1
Paints and varnishes - Methods of exposure to laboratory light sources - Part 1: General guidelines
ISO 16474-2
Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon discharge lamps
ISO 18909
Photography - Processed photographic colour films and paper prints - Methods of measurement of image stability
ISO 18930
Imaging materials - Image colour reflections - Methods of assessment of image stability under outdoor conditions
ISO 18937
Imaging materials - Photographic reflection prints - Methods of measurement of stability under indoor light
ISO 3917
Road vehicles - Safety glazing materials - Test methods for resistance to radiation, high temperature, humidity, fire and simulated weathering
ISO 4892-1
Plastics - Methods of exposure to laboratory light sources - Part 1: General guidelines
ISO 4892-2
Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon arc lamps
JASO M346
Test method for xenon arc lamp exposure for automotive interiors
MIL-STD 810F
Environmental engineering and laboratory testing - Part 2: Laboratory test methods - 505. 4: Solar radiation
Peugeot Citroen (PSA) D47 1431
Behavior of passenger compartment materials and components to artificial light at high and moderate temperatures
SAE J2412
Accelerated exposure of automotive interior trim components using a controlled xenon arc device
SAE J2527
Performance standard for accelerated exposure of automotive exterior materials using a controlled xenon arc device
VDA 75202
Materials for automotive interiors - Materials for automotive interiors -. Test for color fastness and aging in light at high temperatures: Xenon arc
VW PV 1303
Non-metallic materials - Light fastness test for interior parts
VW PV 3929
Non-metallic materials - Ageing in dry and hot climates
VW PV 3930
Non-metallic materials - Ageing in humid and hot climates
