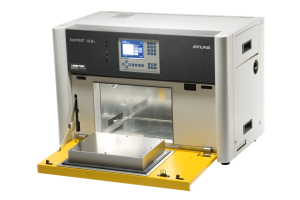

Suntest XLS+

A state-of-the-art, best-in-class benchtop unit for 3-D samples, with useful accessories that allow you to customize the SUNTEST to your needs. The SUNTEST XLS+ is designed to check changes in the properties of materials and products caused by sunlight, temperature and humidity in a short time. Aging that can occur outdoors or indoors over months or years, such as fading, yellowing or loss of strength, can often be simulated in a few weeks with SUNTEST. Benefits: Premium simulation of CIE85 reference sunlight Simulation of sunlight filtered through window glass or artificial supermarket light Best-in-class chamber design for testing 3-D samples Easy-to-use user interface with touch screen and 13 selectable languages Pre-programmed standards for quick start Standard black temperature (BST) sensor according to ISO 4892-1 Automatic irradiance control for different testing needs.

Ask the merchant
+420 274 001 391 +421 903 250 173
mail@kaitrade.cz

Basic information

  • Tabletop version 90 x 54 x 62 cm
  • Display area 39 x 30 cm (1170 cm2).
  • 1 Air-cooled 1700 W xenon lamp
  • Easy-to-use user interface with touch screen and 13 selectable languages
  • Direct setting and control of radiation intensity at 300-400 nm (including 340 nm) or 300-800 nm (including lux)
  • Direct setting and control of black standard temperature (BST), BPT optional
  • Display of temperature in the test chamber
  • Direct setting of tolerance ranges for each test parameter for optimal test control
  • Display of diagnostic messages
  • 10 freely programmable tests with up to 12 phases
  • Pre-programmed polymer and coating standards for quick start
  • Tilt control panel for comfortable ergonomic operation
  • Horizontal exposure area of ​​1170 cm2, for multiple flat or three-dimensional specimens
  • Premium sunlight simulation based on CIE85 reference sun
  • Lamp cartridge with aluminum reflector, lamp connections and with filter hole
  • External filter non-aging uncoated quartz
  • Irradiance range 30-65 W/m2 (300-400 nm); 0.26-0.62 W/m2 (340 nm) or 250-765 W/m2 (300-800 nm); 45-130 klx (lux)
  • BST range 45-100 °C
  • BST sensor design according to ISO 4892-1
  • Ethernet interface for network connection. See optional software add-ons XenoTouch 1, 2 and 3 ("Remote control", "Email service", "Online monitoring")
  • "Shutdown modes: irradiance, light exposure time or total operating time."
  • Advanced auto-start functions
  • Data output via RS232 or memory card
  • Internal memory chip for storing instrument data.

ikonka Temperature
ikonka Moisture
ikonka Sunlight

Product use

adidas FT- 11
Suntest Lightfastness
ASTM C1442
Standard Practice for Testing Sealants Using Artificial Weathering Equipment
ASTM C1501
Standard Test Method for Determining Color Fastness of Building Sealants Using Laboratory Accelerated Weathering Procedures
ASTM D3424
Standard Practice for Evaluating Relative Lightfastness and Weatherability of Printed Materials
ASTM D5071
Standard Practice for Testing Photodegradable Plastics in Xenon Arc Equipment
ASTM D6695
Standard Practice for Testing Paints and Similar Coatings in Xenon Arc Equipment
ASTM G151
Standard Practice for Testing Nonmetallic Materials in Accelerated Testing Equipment Using Laboratory Light Sources
ASTM G155
Standard Practice for Operating Xenon Arc Equipment for Exposing Nonmetallic Materials
EPA/ASTM E896
Standard Test Method for Conducting direct aqueous photolysis tests
GB/T 8427
Textiles - Colour fastness tests - Colour fastness to artificial light: Xenon arc lamp fading test
GB/T 16422
Plastics - Methods for exposure to laboratory light sources - Part 2: Xenon lamps
ICH Q1B
Q1B photostability testing of new pharmaceutical substances and products
ICH Q5C
Stability testing of biotechnological/biological products
ISO 4892-1
Plastics - Methods for exposure to laboratory light sources - Part 1: General guidelines
ISO 4892-2
Plastics - Methods for exposure to laboratory light sources - Part 2: Xenon arc sources
ISO 10977
Photography - Processed colour photographic films and paper prints - Methods for measuring image stability
ISO 11431
Building structures - Fasteners - Determination of adhesion/cohesion of adhesives after exposure to heat, water and artificial light through glass
ISO 16474-2
Paints and varnishes -- Methods of exposure to laboratory light sources - Part 2: Xenon lamps
ISO 11979-5
Ophthalmic implants -- Intraocular lenses -- Part 5: Biocompatibility
OECD 316
OECD Guideline for the Testing of Chemicals. Phototransformation of Chemicals in Water - Direct Photolysis
OECD Guideline
Phototransformation of Chemicals in Soil
UATM M15
Colour Stability: Light
VICH GL5
Stability Testing Guideline: Testing the Photostability of New Veterinary Drug Substances and Drug Products.
