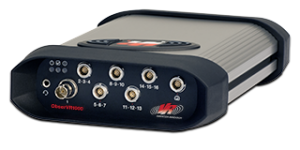

ObserVR 1000

The dynamic signal analyzer can be used for data acquisition, but also as a control unit for a vibration system.

Basic information

The ObserVR1000 requires no special boards, PC drivers, or a computer. Ready to get started? Simply connect your handheld device or computer and set up the ObserVR1000. Once set up, data can be collected with a simple press of the record button. Stream all inputs and outputs to an SD card while running other test modes, or use it as a standalone data logger in the field.

ikonka Vibration

Product use

Features

  • 4 to 128 simultaneous channels (1 BNC input channel, 15 tri-axis input channels)
  • 128 kHz sampling rate
  • IEEE 1451.4 TEDS Class 1
  • IEPE signal processing device (2.1 mA)
  • WiFi 802. 11b/g/n connectivity
  • Battery life > 6 hours
  • GPS
  • Tachometer inputs
  • Gigabit Ethernet
  • Range +/-10 V < -100 dB THD+N
  • 24-bit analog-to-digital converter (ADC)
  • Dynamic range > 110 dB
  • 40 V tolerant inputs protect against transients
  • Optional software includes random import, fatigue damage spectrum (FDS), transient capture, and shock response spectrum (SRS)
  • The ObserVR1000 can also be used as a vibration controller. The VR9500 and VR10500 models can be conveniently used as signal analysis hardware. Analyze with a higher number of channels up to a sampling rate of 256 kHz.

Powerful
Accurate
Intuitive
Reliable
