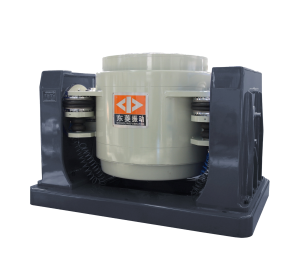

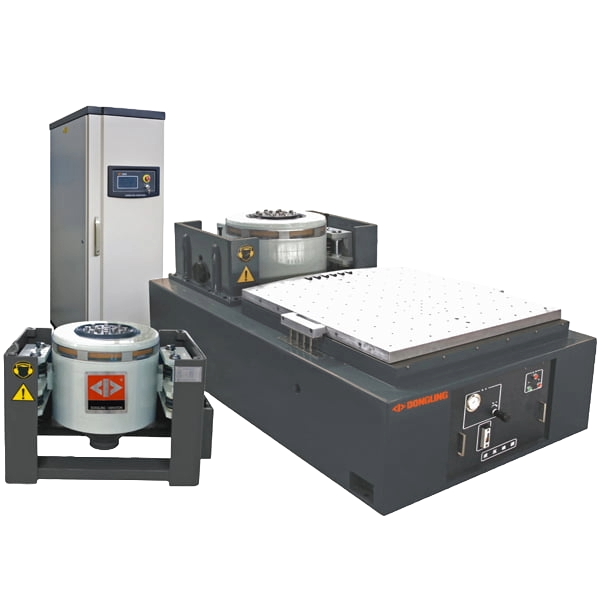

DongLing Electrodynamic Vibration Exciters

Basic information

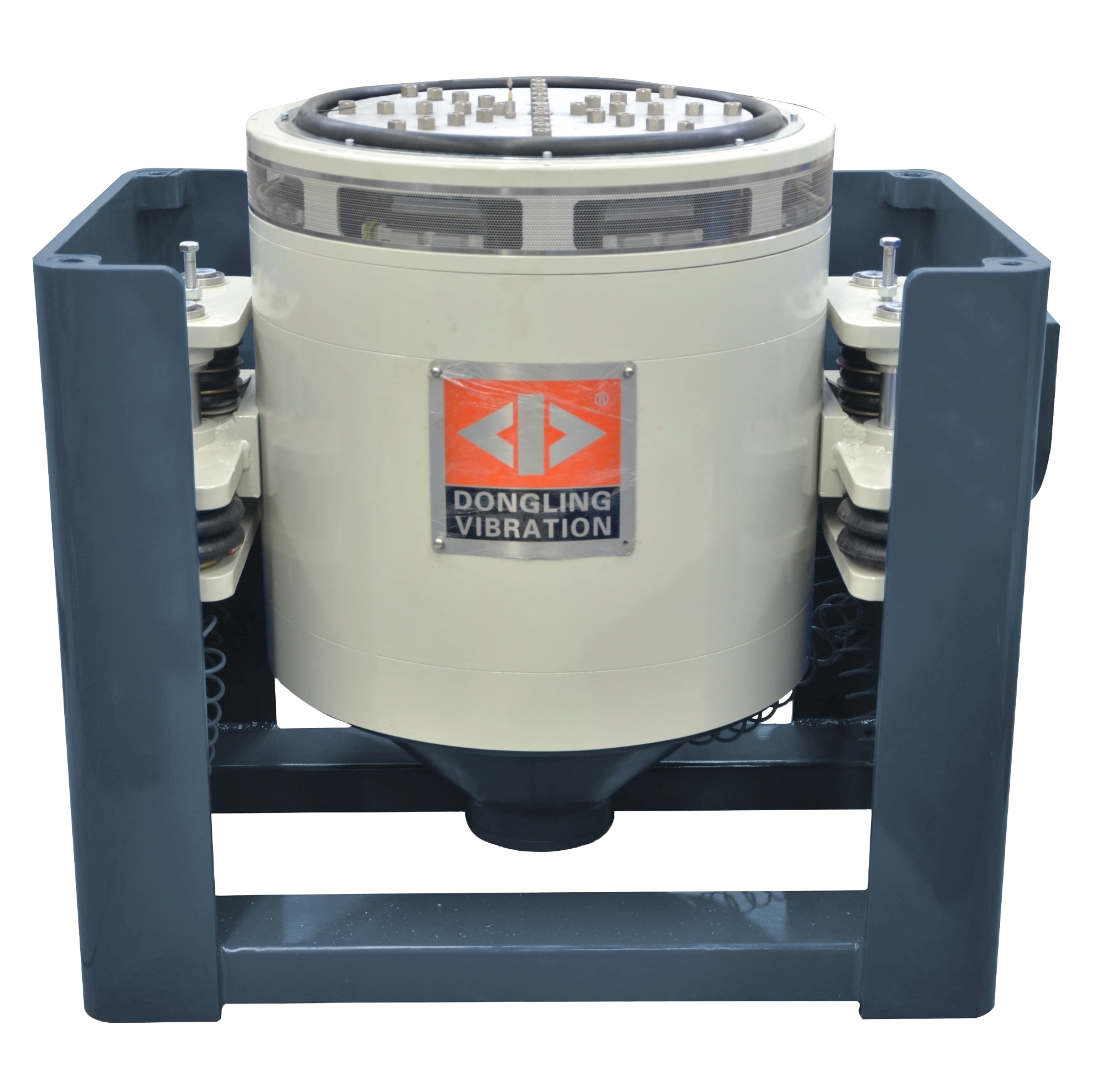

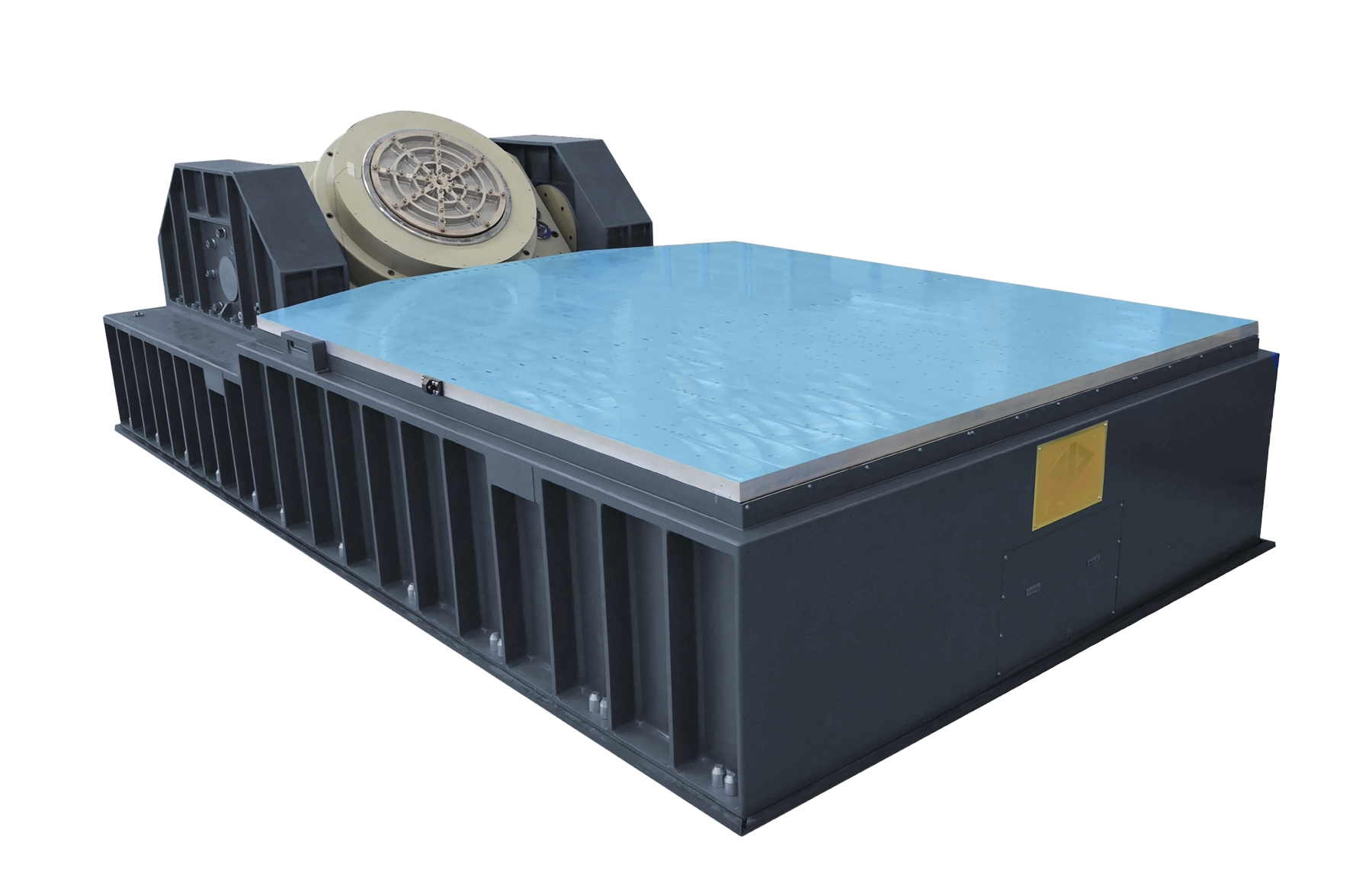

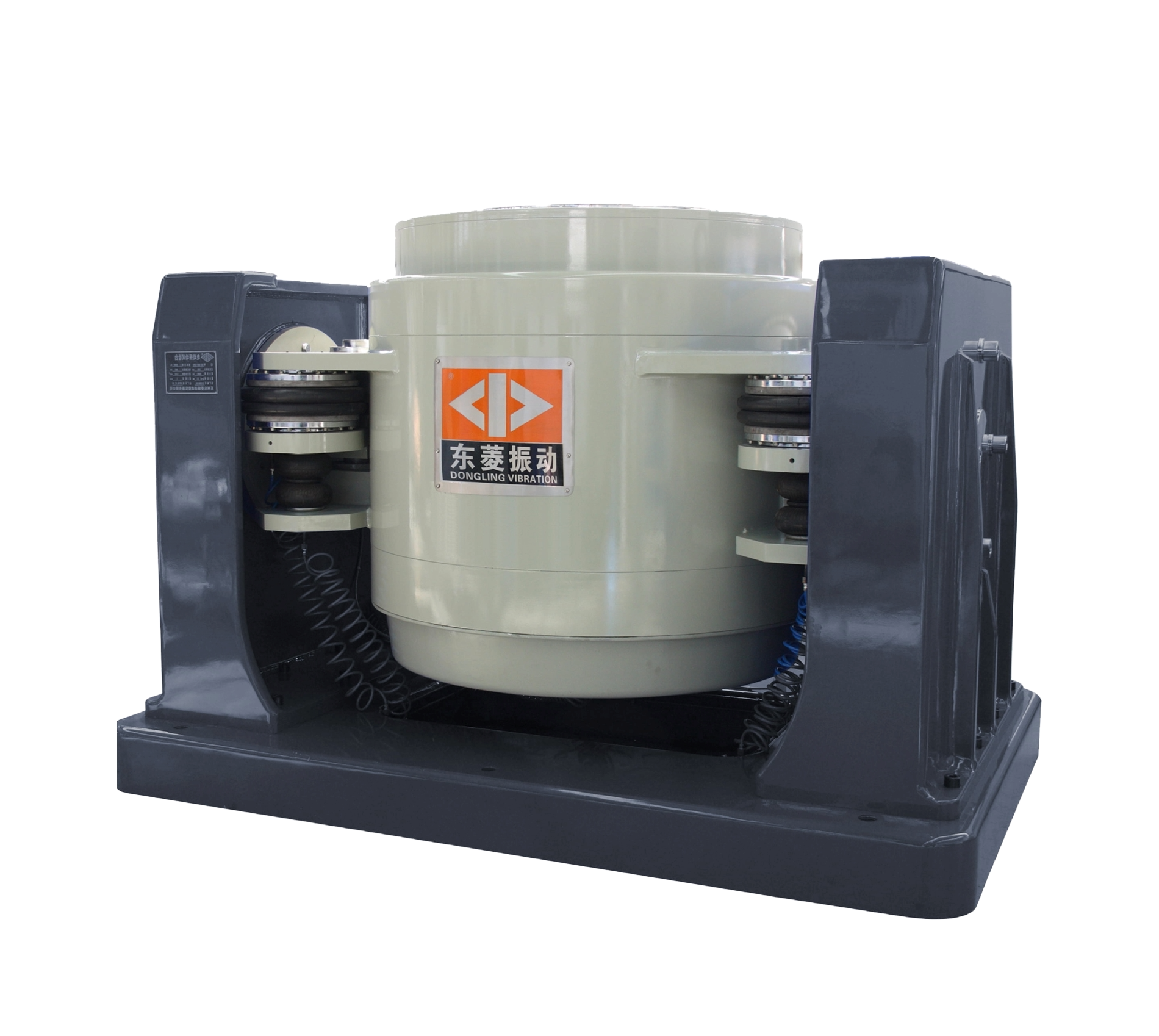

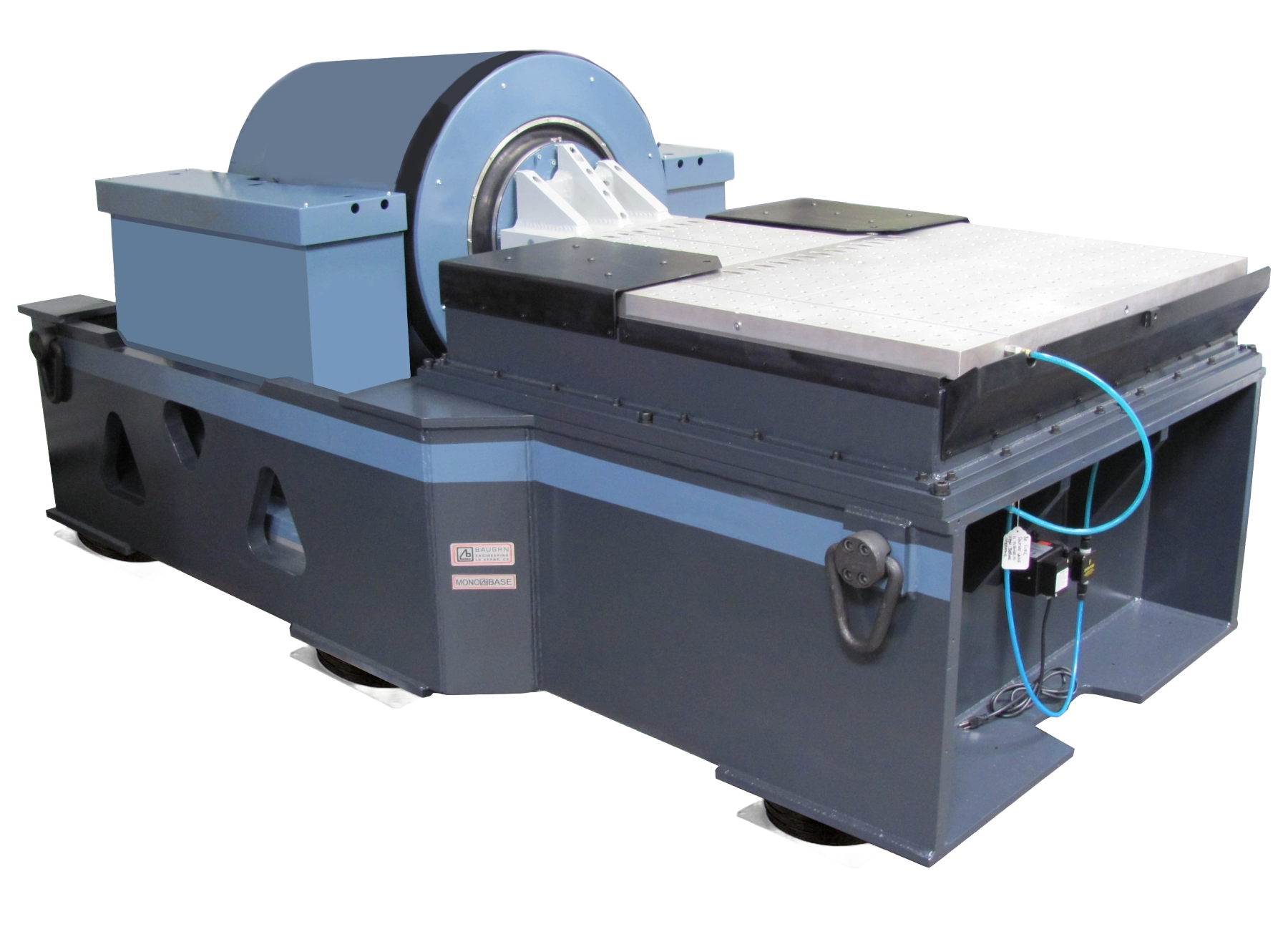

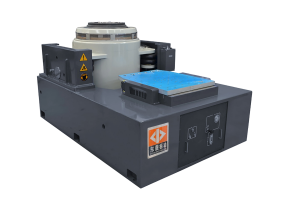

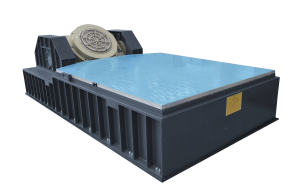

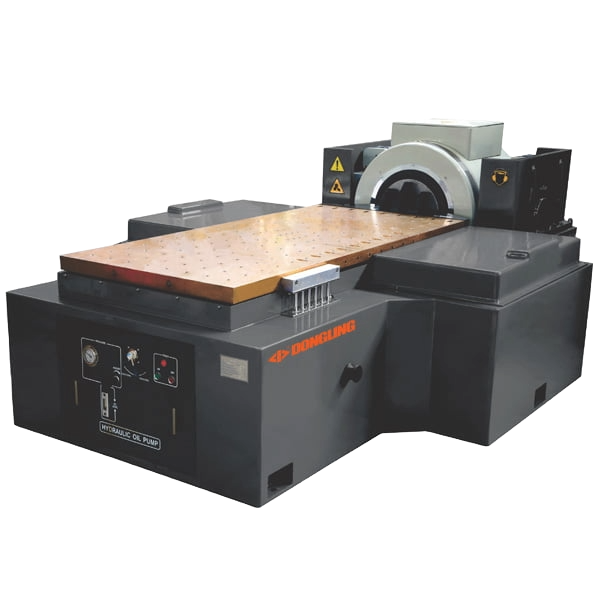

We supply a wide range of vibration exciters. 1 kN to 70 kN in a 1:1 ratio for harmonic vs. random signals. 2:1 ratio for mechanical shocks (optional for triple shock). Peak-to-peak displacement solution, or the maximum displacement is 25 mm, 40 mm, 51 mm, 76 mm and 100 mm depending on the model. For testing horizontal vibrations, the system can be supplemented with a slip table, which is designed depending on the customer's requirements. Up to 70 kN, they are air-cooled. Water cooling of the exciters, on the other hand, allows for an increase in size and power up to 600 kN. In addition to single-axis systems, we also offer three-axis systems. We can also provide solutions completely tailored to customer requirements.

Product use

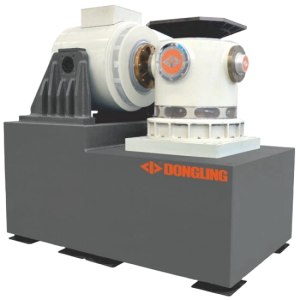

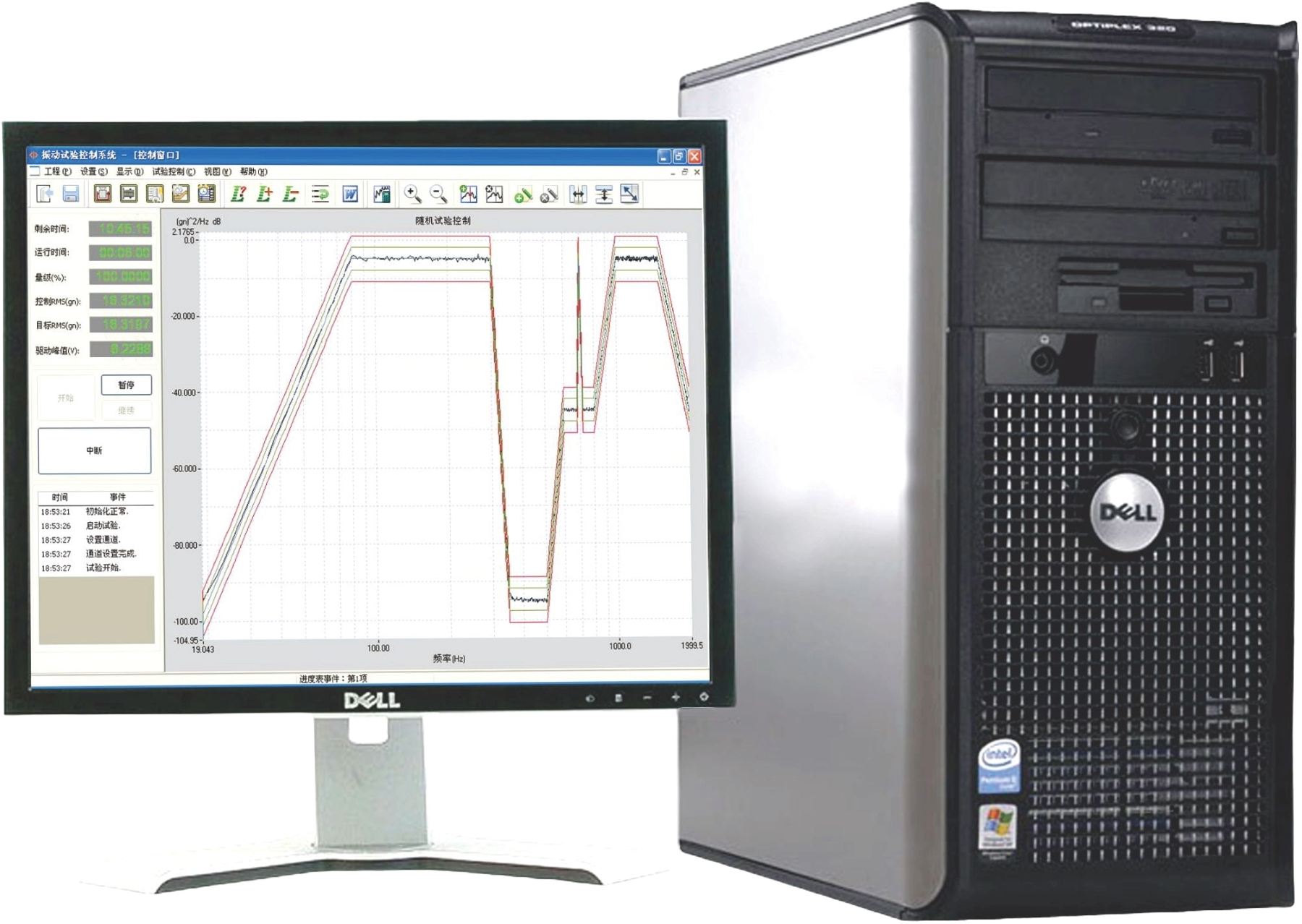

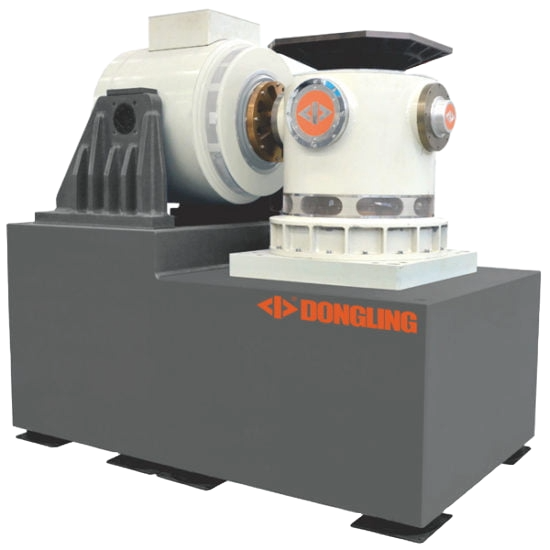

Electrodynamic vibration exciters can be configured according to customer requirements and physical possibilities. Vertical vibrations and shocks on the exciter in the basic version, or horizontal vibrations with the addition of a slip table, multi-axis vibrations, combinations of vibrations and temperature or humidity and many other solutions demonstrate the flexibility of these systems and their extensive possibilities. In the case of connecting the vibration exciter to a climate chamber, Dongling also supplies thermal insulation barriers or head expanders / extenders. Vibration exciters have an energy saving function, where the operating mode is set according to the type of test (full or low). With low operation up to 60% of the exciter power, it is possible to achieve energy savings of up to 60%. The indisputable advantages of Dongling systems are a wide frequency range and high reliability, intuitive and easy control.

Ask the merchant

+420 274 001 391 +421 903 250 173

mail@kaitrade.cz

Powerful

Robust

Reliable

Customized

Durable

Laboratory

Contact our
experts

Ondřej

Heřmanský

Sales Manager

+420 602 149 308

Ing. Lukáš

Kovárník

Technical support for vibrations

+420 607 051 404

Inquiry
form

Why work with us?

Since 1992, we have been offering laboratory, testing, and industrial equipment for professional use. Equipment for almost all industries. We are specialists in the equipment we supply, both in the Czech Republic and Slovakia.

We draw on many years of experience from installing standard products and designing specialized solutions tailored to customer requirements. These customers come from a wide range of industries, including automotive, electronics, construction, pharmaceuticals, military, and biology.

We help everyone with project preparation, selecting the right solution, and the delivery and installation of equipment. We also provide after-sales service and maintenance for individual devices.
